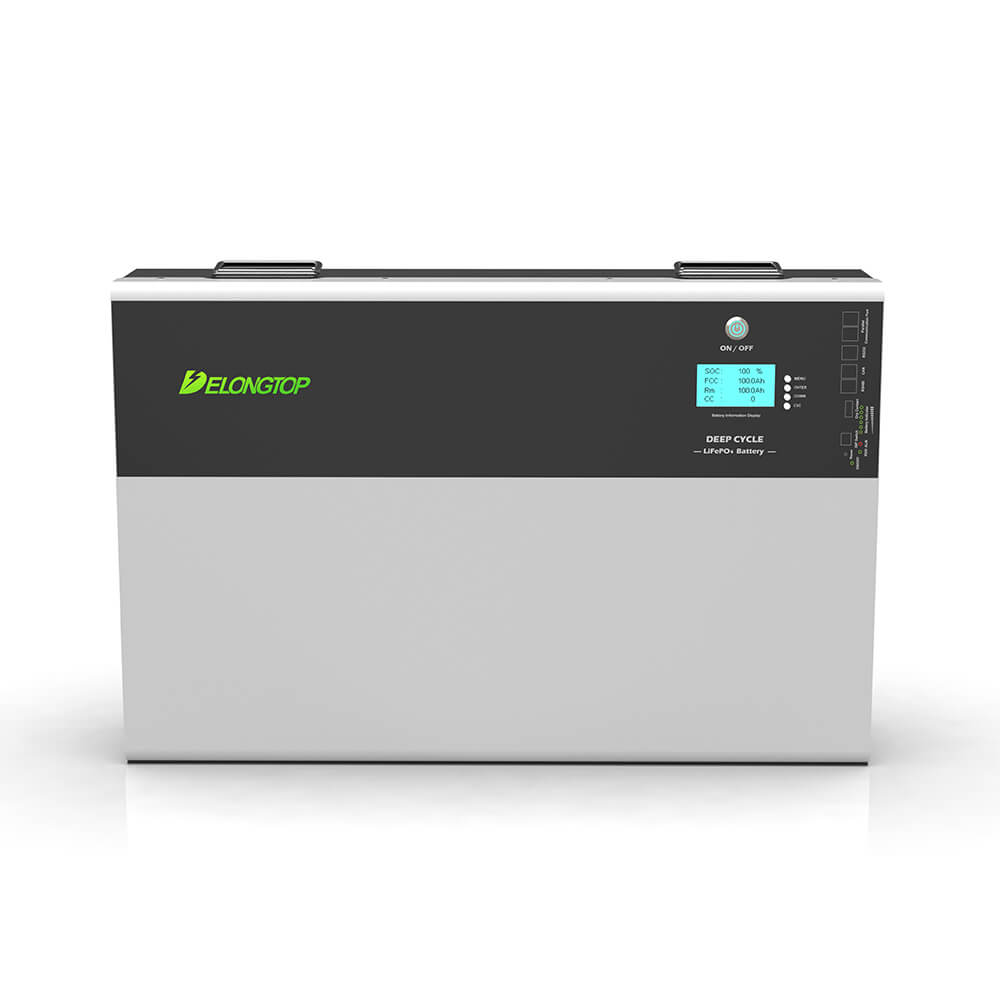

51.2V 200Ah 10kwh Wall Mount Lithium Battery ESS DL-LFP-HW51200

51.2V 200ah 10.24kwh lifepo4 powerwall battery storage | DL-LFP-HW51200

  • Brand: Delong Energy
  • Sample: Available For Test
  • Service: 10 Years Warranty
  • Support: OEM, ODM, OBM, Customized
  • Certificates: CE, UL, MSDS, IEC, UN38.3, ISO, etc.
  • Price: Click The Button Below To Get A Discount Price.


51.2V 200Ah 10.24kwh Wall Mount Lithium Battery Powerwall For Residential Solar Battery Storage

Wall Mount Lifepo4 Battery

10Kwh Wall Mount Lifepo4 Battery

Advantages of 10kwh Wall Mounted Lithium Battery

1. The wall-mounted battery uses lithium iron phosphate(lifepo4) as the positive electrode material, with stable chemical properties and high safety performance.

2. With a cycle life of over 6,500 times, it can be used as a long-term and stable home backup energy source.

3. The BMS system is equipped with RS485 and CAN communication ports, which are highly compatible with the inverter, such as Deye.

4. Wall-mounted batteries are small and take up little space, but they are simple to install and require almost no maintenance.

5. The battery supports a parallel connection to expand capacity and achieve the needed power.

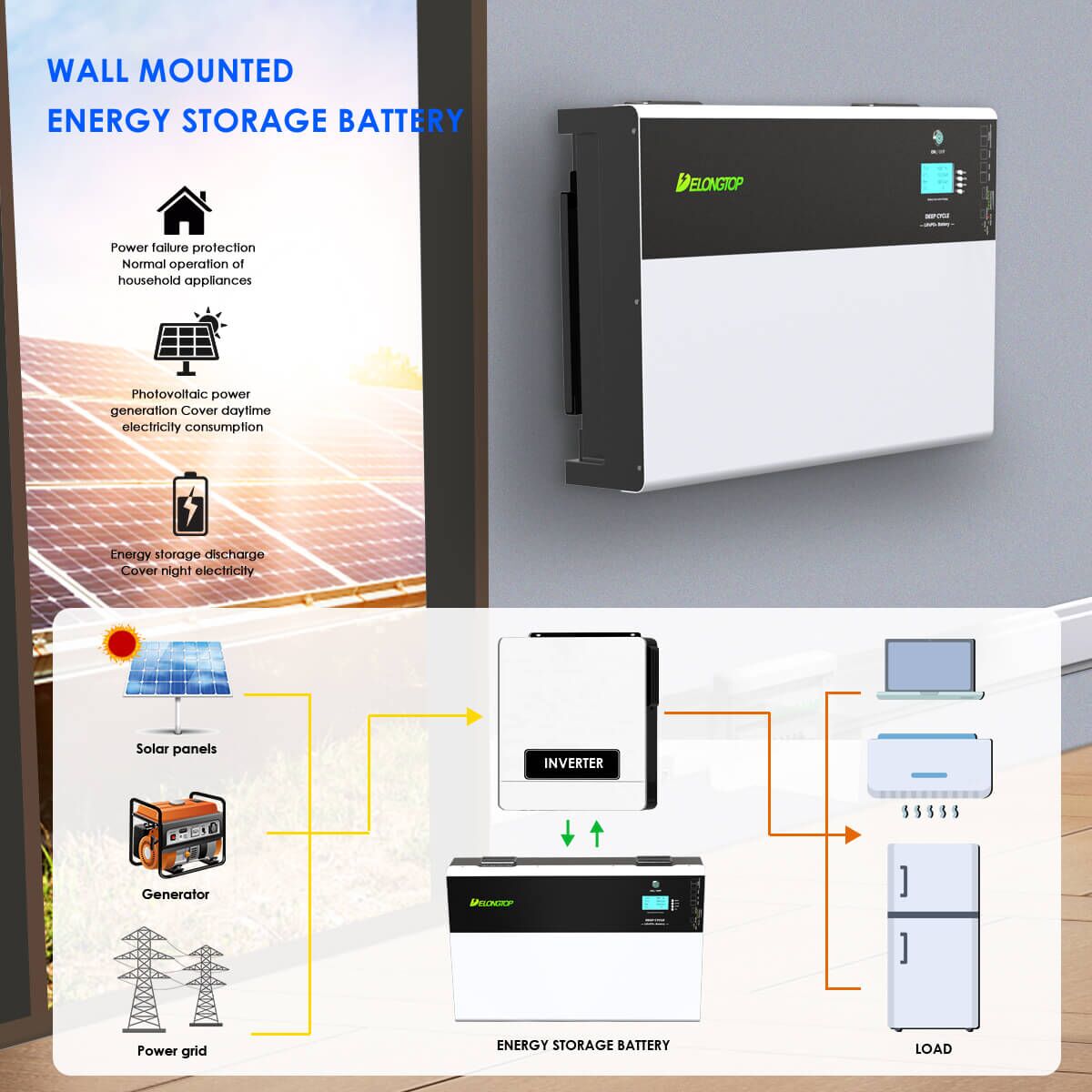

Wall Mounted Energy Storage Battery Advantage

Wall Mounted Energy Storage Battery Advantage

HW51200 Parallel Connection Expand Capacity

HW51200 Parallel Connection

HW51200 Parallel Connection

Inverter Compatibility List

Compatible Inverter List

Compatible Inverter List


Lithium Battery Certification

Installation Guide – Wall Mounted Lithium Battery

YouTube player

Other Horizontal Wall-Mounted Batteries

51.2v 200Ah 10.24kwh, model DL-LFP-HW48200
25.6V 200Ah 5.12kwh, model DL-LFP-HW25200

Why Choose Delong Energy

The lithium battery factory operates generally for 11 years, with quality online.

Comprehensive product range: 12v/24v/ to 96v lithium batteries, home battery energy storage systems, power batteries, and outdoor portable power storage.

Support customizing battery voltage, current, capacity, appearance, etc.

Provide battery OEM, ODM and OBM services.

10-year after-sales guarantee, professional technical support.

About Delong Energy

About Delong Energy

Technical Data

Models DL-LFP-HW51200
Product Specification 51.2V 200Ah
Nominal Voltage 51.2V
Nominal Capacity 200Ah
Battery Energy 10.24Kwh
Max Charge Current 100A
Max Discharge Current 200A
Recommended Load 5~8Kw
Charging Cut-off Voltage 57.6V±0.2V
Discharging Cut-off Voltage 44.8V±0.2V
Cell Type LiFePO4 Battery
Terminal M8
Case Material Metal Box
Communication Mode RS485/CAN (Optional with Communication)
Charge Temperature Range 0~45
Discharge Temperature Range -5~55
Cycle Life 26500 Cycles
Designed Life 12 Years
Colour white +black
Weight 77±0.5Kg
Dimensions(LxWxH) 730*475*145/180mm
Assembly Method Wall Mounted

PDF Download

DL-LFP-HW51200 Datasheet

User Manual – 10Kwh Wall Mounted Series


1. Is Delong Energy a lithium battery factory?
Delong Energy is a battery factory with 11 years of experience, which integrates research, development, production, and sales.

2. How about the quality of lithium battery products from Delong Energy?
Delong Energy has a strong R&D team and a set of international certifications, including MSDS, UN38.3, FCC, IEC62133, CE, UL, KC, BIS, CB, ROHS, and ISO9001:2015 certified.

3. Can you do An OEM/ODM project?
We have engineers who can help you design and R&D any related products.

4. Can you customize the battery pack for more function?
Yes, we have a professional engineering team to provide an excellent solution for you.

5. Do you have MOQ?
No limited.

6. Can I have samples to test? And what is the lead time for a sample order?
Yes, we can supply samples. The lead time for samples is 3-5 days. The buyer pays for the sample cost and shipping cost.

7. What is your term of payment?
We adopt T/T, Paypal, Alibaba payment way, Credit Card, Visa, Echecking, Master Card, Trade Assurance, etc.

8. Do you provide after-sales service?
Yes, the battery warranty is 10 years. If there are any quality problems on our side in this period, we can send a new one as a replacement.
