10Kwh Household Solar Energy Storage (LiFePO4) Battery LFP HS51200-10
$1,999.00
5% Off
10Kwh LiFePO4 Battery
Deep Cycle (≥6000 Time @ 1C 25°C 80%DOD)
Built in 200A BMS and Safety Protection Circuit
New Stacked Design, Can Freely Change Positions Indoors
Support Communication With Inverter
Specification Sheet
DOWNLAOD?
描述
Specification Parameters
| Product Model: | DL-LFP HS51200-10 |
| Nominal Voltage: | 51.2V |
| Nominal Capacity: | 200Ah |
| Energy: | 10240Wh |
| Cell Type: | Lithium iron Phosphate (LiFePO4) Battery |
| Max. Charging Current: | 80A |
| Charging Cut-off Voltage: | 58.4V±0.2V |
| Max. Discharge Current: | 200A |
| Discharging Cut-off Voltage: | 36.8V±0.2V |
| Battery Status Display: | LCD Display and LED Indicator |
| Terminal: | M8 |
| Communication Mode: | RS485/CAN |
| Material: | Metal Box |
| Assembly Method: | Movable Type Stack |
| Operating Temperature Range: | Charge：0~45℃ |
| Discharge：-5~55℃ | |
| Storage temperature: | 0~45°C |
| Dimensions: | 690mm x 590mm x 145mm (Including Base 290mm) |
| Weight: | About 93Kg (Including Base) |

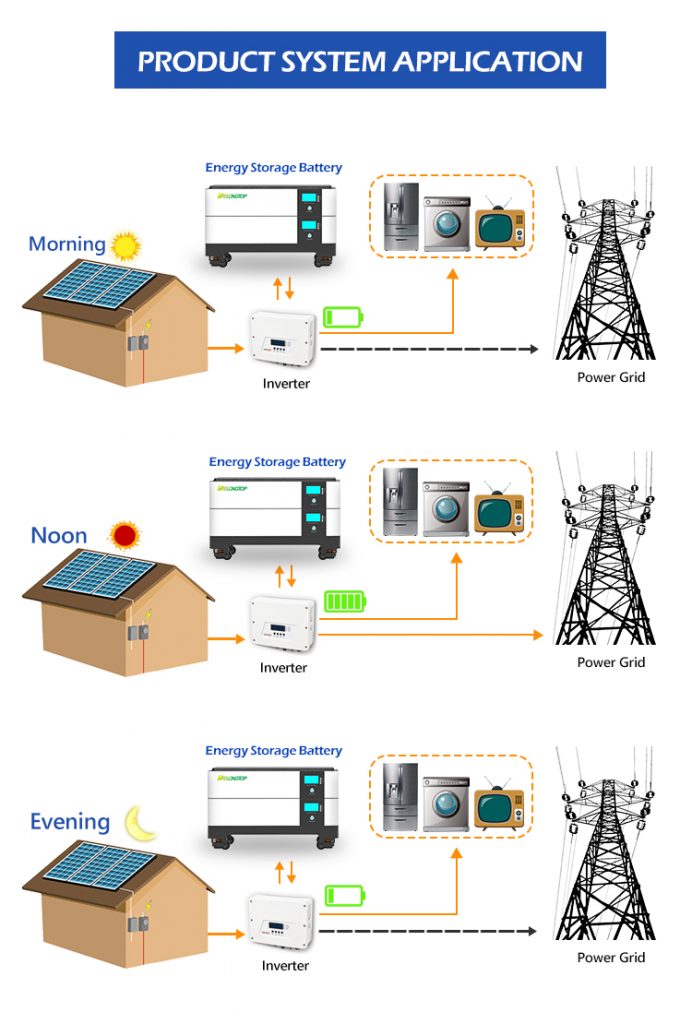

Product Features and Application Scenarios
其他信息
| Capacity | 200Ah |
|---|---|
| Energy | 10KW |
| Voltage | 51.2V |
| Single Packing Size | 77cm x 67cm x 24cm |
| Gross Weight | 78.5Kg |
| Accessory | 2 x 30cm 4#AWG Red Black Cable (M8 Copper Connector) |
| Optional | Movable Pulley Base |
